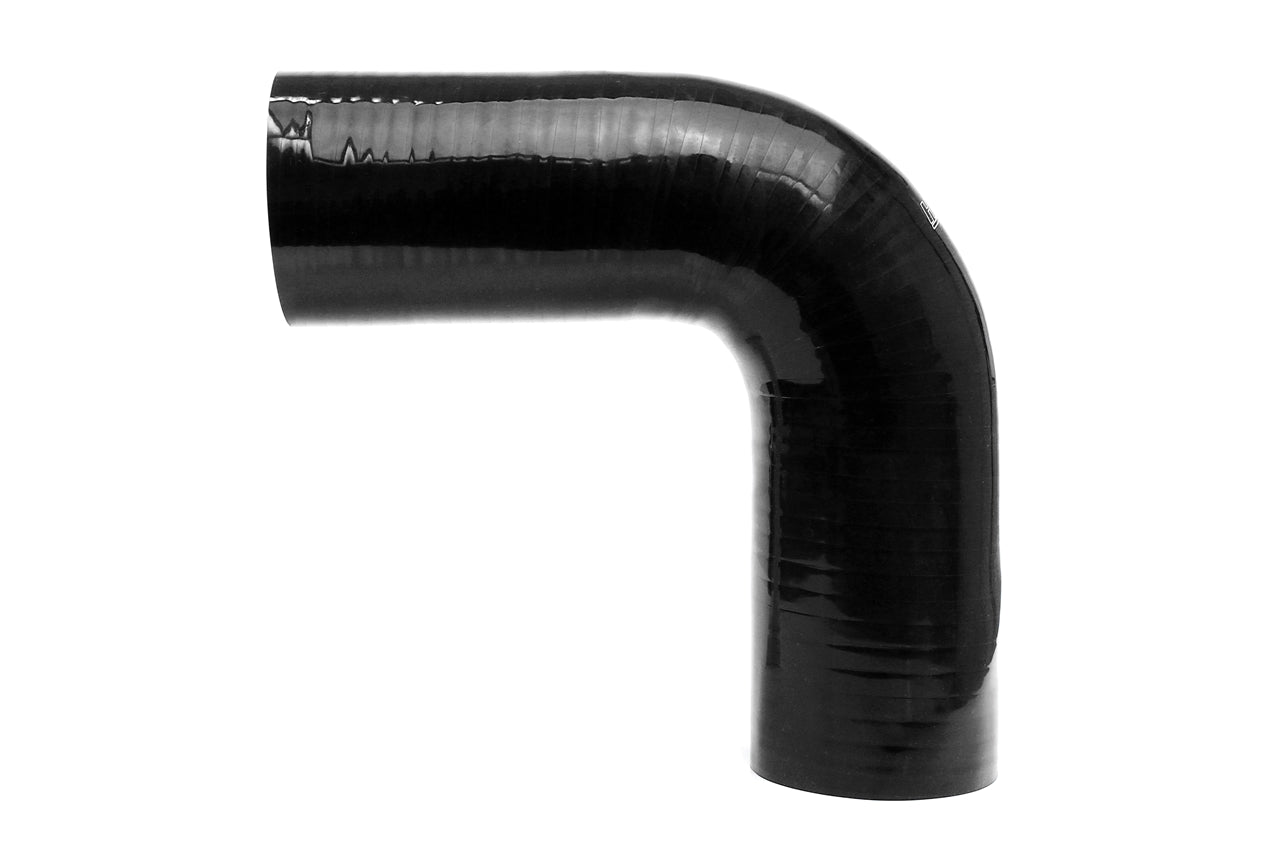

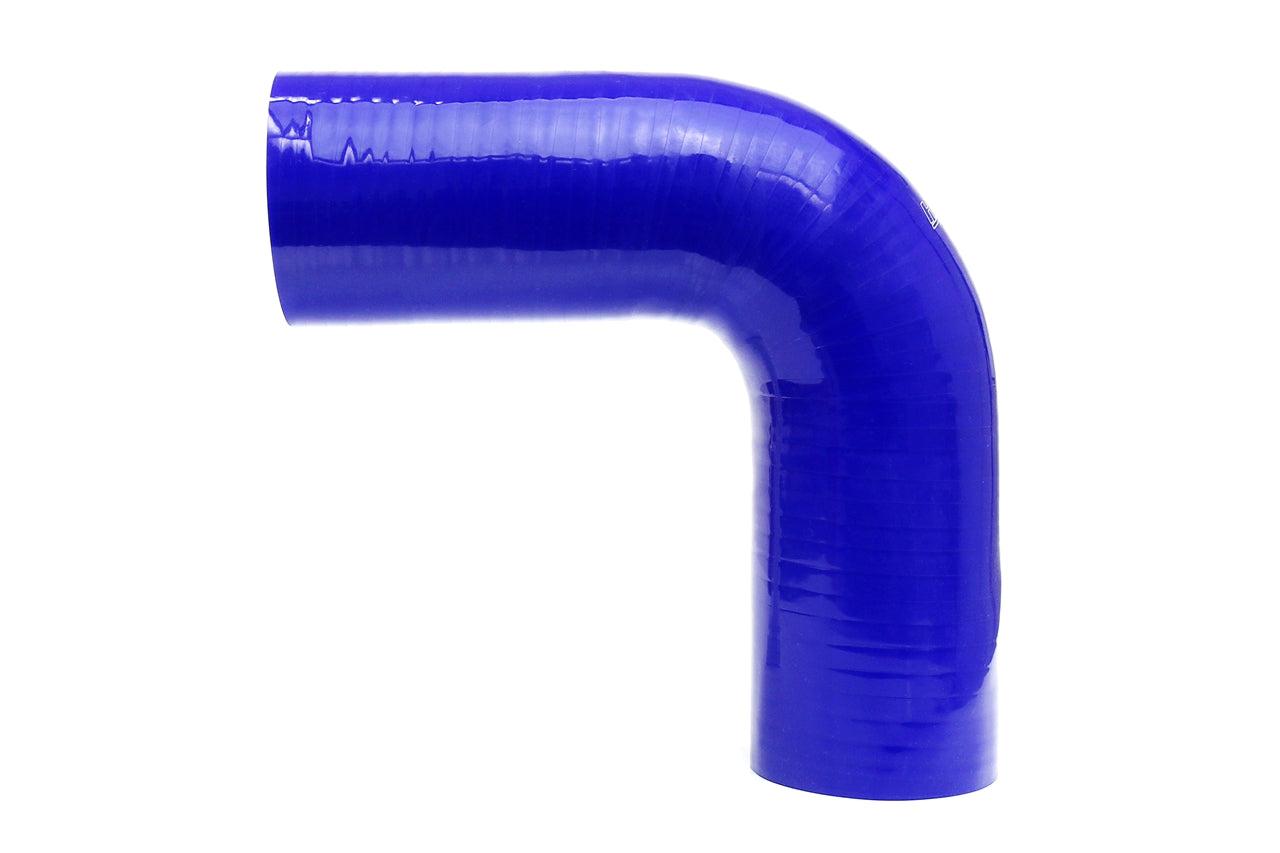

HPS High Temperature Reinforced 90 Degree Silicone Elbow Coupler Hoses

Select Size To View Product

Product Highlights
- Features 4-ply polyester reinforced high temperature material
- Maximum temperature rating: 350 deg. F (177 deg. C)
- Meet or exceed SAEJ20 Standard
- Available in both standard inches and hard-to-find Metric sizes.
- Fast turnaround time, up to 90% of silicone elbows are in stock and ready to ship or pickup from HPS store.

Features and Benefits
HPS Performance Silicone 90 Degree Elbow Coupler Hose features 4-ply reinforced high temperature material, for which meet or exceed SAEJ20 Standard. HPS Performance 90 Degree Bend Elbow Silicone Hoses are used by professionals in industries such as high performance racing vehicles, commercial truck and bus, Marine, agricultural and off highway vehicles, turbo diesel, food and beverage, and general manufacturing industries.
HPS Performance 90 Degree silicone elbow coupling hoses are available in both standard inches and hard-to-find Metric sizes. In order to meet the high demand and shorten the turnaround time, up to 90% of HPS 90 Degree elbow coupling silicone hoses are instock and ready to ship or pickup from HPS store.

Technical Specification
- Temperature Range: -65 deg. F to + 350 deg. F (177 deg. C)
- Reinforced Layer: 4-ply Polyester Reinforced
- Color: Black / Blue

Remark
Silicone hose is NOT compatible with fuel or oil.
Silicone hose is compatible with water or anti-freeze such as coolant.

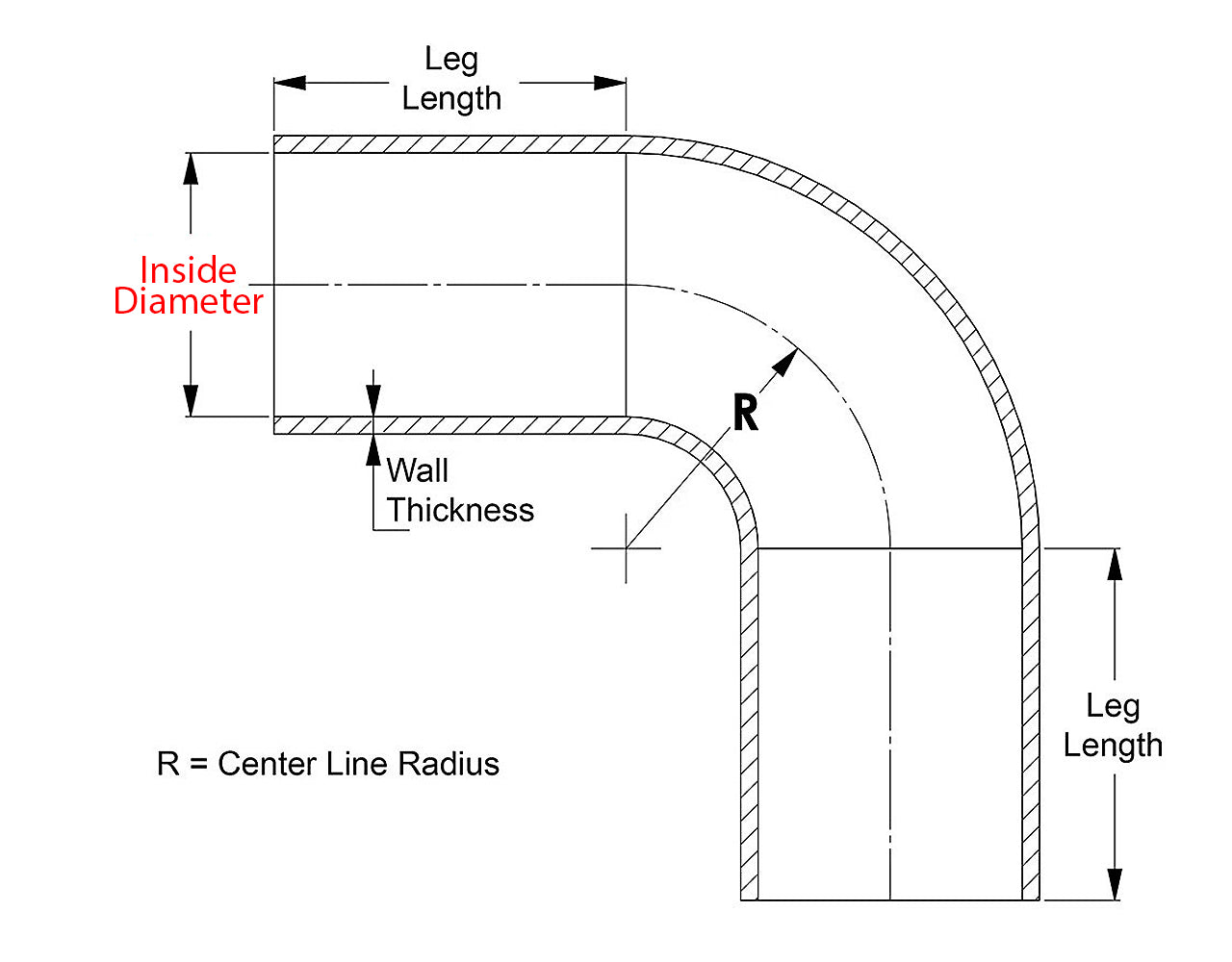

Size Chart

Inside Diameter Leg Length Center Line Radius Price (USD) Part Number | Black Part Number | Blue
1/4" (6.5mm) 5" 3/4" $16.67 HTSEC90-025-BLK HTSEC90-025-BLUE Buy Now
1/4" (6.5mm) 10" 3/4" $27.18 HTSEC90-025-L10-BLK HTSEC90-025-L10-BLUE Buy Now
1/4" (6.5mm) 5" and 36" 1" $54.65 HTSEC90-025-L5x36-BLK HTSEC90-025-L5x36-BLUE Buy Now
1/4" (6.5mm) 5" and 48" 1" $70.42 HTSEC90-025-L5x48-BLK HTSEC90-025-L5x48-BLUE Buy Now
1/4" (6.5mm) 5" and 60" 1" $84.50 HTSEC90-025-L5x60-BLK HTSEC90-025-L5x60-BLUE Buy Now
5/16" (8mm) 5" 3/4" $17.86 HTSEC90-032-BLK HTSEC90-032-BLUE Buy Now
5/16" (8mm) 10" 3/4" $26.06 HTSEC90-032-L10-BLK HTSEC90-032-L10-BLUE Buy Now
5/16" (8mm) 5" and 36" 1" $56.34 HTSEC90-032-L5x36-BLK HTSEC90-032-L5x36-BLUE Buy Now
5/16" (8mm) 5" and 48" 1" $72.59 HTSEC90-032-L5x48-BLK HTSEC90-032-L5x48-BLUE Buy Now
5/16" (8mm) 5" and 60" 1" $86.67 HTSEC90-032-L5x60-BLK HTSEC90-032-L5x60-BLUE Buy Now
3/8" (9.5mm) 5" 3/4" $20.23 HTSEC90-038-BLK HTSEC90-038-BLUE Buy Now
3/8" (9.5mm) 10" 3/4" $33.32 HTSEC90-038-L10-BLK HTSEC90-038-L10-BLUE Buy Now
3/8" (9.5mm) 5" and 36" 1" $59.59 HTSEC90-038-L5x36-BLK HTSEC90-038-L5x36-BLUE Buy Now
3/8" (9.5mm) 5" and 48" 1" $74.76 HTSEC90-038-L5x48-BLK HTSEC90-038-L5x48-BLUE Buy Now
3/8" (9.5mm) 5" and 60" 1" $88.85 HTSEC90-038-L5x60-BLK HTSEC90-038-L5x60-BLUE Buy Now
7/16" (11mm) 5" 3/4" $21.42 HTSEC90-044-BLK HTSEC90-044-BLUE Buy Now
1/2" (13mm) 5" 1" $23.79 HTSEC90-050-BLK HTSEC90-050-BLUE Buy Now
1/2" (13mm) 10" 3/4" $34.51 HTSEC90-050-L10-BLK HTSEC90-050-L10-BLUE Buy Now
1/2" (13mm) 4" and 6" 1" $28.46 HTSEC90-050-L4X6-BLK HTSEC90-050-L4X6-BLUE Buy Now
1/2" (13mm) 5" and 12" 1" $34.67 HTSEC90-050-L5X12-BLK HTSEC90-050-L5X12-BLUE Buy Now
1/2" (13mm) 5" and 18" 1" $41.18 HTSEC90-050-L5X18-BLK HTSEC90-050-L5X18-BLUE Buy Now
1/2" (13mm) 5" and 36" 1" $65.01 HTSEC90-050-L5X36-BLK HTSEC90-050-L5X36-BLUE Buy Now
1/2" (13mm) 8" and 18" 1" $43.35 HTSEC90-050-L8X18-BLK HTSEC90-050-L8X18-BLUE Buy Now
1/2" (13mm) 8" and 24" 1" $53.34 HTSEC90-050-L8X24-BLK HTSEC90-050-L8X24-BLUE Buy Now
5/8" (16mm) 5" 1" $24.99 HTSEC90-062-BLK HTSEC90-062-BLUE Buy Now
5/8" (16mm) 10" 1" $35.69 HTSEC90-062-L10-BLK HTSEC90-062-L10-BLUE Buy Now
5/8" (16mm) 4" and 6" 1" $29.60 HTSEC90-062-L4X6-BLK HTSEC90-062-L4X6-BLUE Buy Now
5/8" (16mm) 5" and 12" 1" $40.96 HTSEC90-062-L5X12-BLK HTSEC90-062-L5X12-BLUE Buy Now
5/8" (16mm) 5" and 18" 1" $46.65 HTSEC90-062-L5X18-BLK HTSEC90-062-L5X18-BLUE Buy Now
5/8" (16mm) 5" and 24" 1" $54.99 HTSEC90-062-L5X24-BLK HTSEC90-062-L5X24-BLUE Buy Now
5/8" (16mm) 5" and 36" 1" $67.18 HTSEC90-062-L5X36-BLK HTSEC90-062-L5X36-BLUE Buy Now
5/8" (16mm) 5" and 48" 1" $80.18 HTSEC90-062-L5X48-BLK HTSEC90-062-L5X48-BLUE Buy Now
5/8" (16mm) 5" and 60" 1" $86.67 HTSEC90-062-L5X60-BLK HTSEC90-062-L5X60-BLUE Buy Now
5/8" (16mm) 8" and 18" 1" $46.59 HTSEC90-062-L8X18-BLK HTSEC90-062-L8X18-BLUE Buy Now
3/4" (19mm) 5" 1-1/4" $26.17 HTSEC90-075-BLK HTSEC90-075-BLUE Buy Now
3/4" (19mm) 10" 1-1/4" $36.88 HTSEC90-075-L10-BLK HTSEC90-075-L10-BLUE Buy Now
3/4" (19mm) 4" and 6" 1" $31.92 HTSEC90-075-L4X6-BLK HTSEC90-075-L4X6-BLUE Buy Now
3/4" (19mm) 5" and 12" 1" $46.65 HTSEC90-075-L5X12-BLK HTSEC90-075-L5X12-BLUE Buy Now
3/4" (19mm) 5" and 18" 1" $48.93 HTSEC90-075-L5X18-BLK HTSEC90-075-L5X18-BLUE Buy Now
3/4" (19mm) 5" and 24" 1" $60.30 HTSEC90-075-L5X24-BLK HTSEC90-075-L5X24-BLUE Buy Now
3/4" (19mm) 5" and 36" 1" $70.42 HTSEC90-075-L5X36-BLK HTSEC90-075-L5X36-BLUE Buy Now
3/4" (19mm) 5" and 48" 1" $86.67 HTSEC90-075-L5X48-BLK HTSEC90-075-L5X48-BLUE Buy Now
3/4" (19mm) 5" and 60" 1" $98.59 HTSEC90-075-L5X60-BLK HTSEC90-075-L5X60-BLUE Buy Now
3/4" (19mm) 8" and 24" 1" $59.59 HTSEC90-075-L8X24-BLK HTSEC90-075-L8X24-BLUE Buy Now
7/8" (22mm) 5" 1-1/4" $28.55 HTSEC90-087-BLK HTSEC90-087-BLUE Buy Now
7/8" (22mm) 6" 1-1/4" $38.06 HTSEC90-087-L6-BLK HTSEC90-087-L6-BLUE Buy Now
7/8" (22mm) 10" 1-1/4" $38.06 HTSEC90-087-L10-BLK HTSEC90-087-L10-BLUE Buy Now
1" (25mm) 5" 1-1/4" $29.74 HTSEC90-100-BLK HTSEC90-100-BLUE Buy Now
1" (25mm) 10" 1-1/4" $41.64 HTSEC90-100-L10-BLK HTSEC90-100-L10-BLUE Buy Now
1-1/8" (28mm) 5" 1-1/2" $30.92 HTSEC90-112-BLK HTSEC90-112-BLUE Buy Now
1-3/16" (30mm) 5" 1-1/2" $33.32 HTSEC90-118-BLK HTSEC90-118-BLUE Buy Now
1-1/4" (32mm) 5" 1-1/2" $34.51 HTSEC90-125-BLK HTSEC90-125-BLUE Buy Now
1-1/4" (32mm) 10" 1-1/2" $48.04 HTSEC90-125-L10-BLK HTSEC90-125-L10-BLUE Buy Now
1-3/8" (35mm) 5" 1-1/2" $35.69 HTSEC90-138-BLK HTSEC90-138-BLUE Buy Now
1-3/8" (35mm) 10" 1-1/2" $51.56 HTSEC90-138-L10-BLK HTSEC90-138-L10-BLUE Buy Now
1-1/2" (38mm) 5" 1-3/4" $38.06 HTSEC90-150-BLK HTSEC90-150-BLUE Buy Now
1-1/2" (38mm) 10" 1-3/4" $57.41 HTSEC90-150-L10-BLK HTSEC90-150-L10-BLUE Buy Now
1-5/8" (41mm) 5" 1-3/4" $39.26 HTSEC90-162-BLK HTSEC90-162-BLUE Buy Now
1-5/8" (41mm) 10" 1-3/4" $60.93 HTSEC90-162-L10-BLK HTSEC90-162-L10-BLUE Buy Now
1-3/4" (45mm) 5" 2" $40.44 HTSEC90-175-BLK HTSEC90-175-BLUE Buy Now
1-3/4" (45mm) 10" 2" $65.61 HTSEC90-175-L10-BLK HTSEC90-175-L10-BLUE Buy Now
1-7/8" (48mm) 5" 2" $41.64 HTSEC90-187-BLK HTSEC90-187-BLUE Buy Now
2" (51mm) 5" 2-1/4" $44.01 HTSEC90-200-BLK HTSEC90-200-BLUE Buy Now
2-1/8" (54mm) 5" 2-1/4" $45.20 HTSEC90-212-BLK HTSEC90-212-BLUE Buy Now
2-1/4" (57mm) 5" 2-1/2" $48.04 HTSEC90-225-BLK HTSEC90-225-BLUE Buy Now
2-3/8" (60mm) 5" 2-1/2" $57.41 HTSEC90-238-BLK HTSEC90-238-BLUE Buy Now
2-1/2" (63mm) 5" 2-3/4" $59.76 HTSEC90-250-BLK HTSEC90-250-BLUE Buy Now
2-9/16" (65mm) 5" 2-3/4" $52.45 HTSEC90-256-BLK HTSEC90-256-BLUE Buy Now
2-11/16" (68mm) 5" 2-3/4" $54.68 HTSEC90-268-BLK HTSEC90-268-BLUE Buy Now
2-3/4" (70mm) 5" 3" $66.79 HTSEC90-275-BLK HTSEC90-275-BLUE Buy Now
3" (76mm) 5" 3-1/4" $71.47 HTSEC90-300-BLK HTSEC90-300-BLUE Buy Now
3-1/8" (80mm) 5" 3-1/4" $65.84 HTSEC90-312-BLK HTSEC90-312-BLUE Buy Now
3-1/4" (83mm) 5" 3-1/2" $71.42 HTSEC90-325-BLK HTSEC90-325-BLUE Buy Now
3-1/2" (89mm) 5" 3-3/4" $90.22 HTSEC90-350-BLK HTSEC90-350-BLUE Buy Now
3-3/4" (95mm) 5" 4" $93.73 HTSEC90-375-BLK HTSEC90-375-BLUE Buy Now
4" (102mm) 5" 4" $115.00 HTSEC90-400-BLK HTSEC90-400-BLUE Buy Now
4-1/2" (114mm) 5" 4-1/2" $127.00 HTSEC90-450-BLK HTSEC90-450-BLUE Buy Now
5" (127mm) 5" 5" $151.00 HTSEC90-500-BLK HTSEC90-500-BLUE Buy Now
5-1/2" (140mm) 1-7/8" 5-1/2" $105.00 HTSEC90-550-L187-BLK HTSEC90-550-L187-BLUE Buy Now
Inside Diameter Leg Length
1/4" 5", 10"
5" and 36"
5" and 48"
5" and 60"
Buy Now
5/16" 5", 10"
5" and 36"
5" and 48"
5" and 60"
Buy Now
3/8" 5", 10"
5" and 36"
5" and 48"
5" and 60"
Buy Now
7/16" 5" Buy Now
1/2" 5", 10"
4" and 6"
5" and 12"
5" and 18"
5" and 36"
8" and 18"
8" and 24"
Buy Now
5/8" 5", 10"
4" and 6"
5" and 12"
5" and 18"
5" and 24"
5" and 36"
5" and 48"
5" and 60"
8" and 18"
Buy Now
3/4" 5", 10"
4" and 6"
5" and 12"
5" and 18"
5" and 24"
5" and 36"
5" and 48"
5" and 60"
8" and 24"
Buy Now
7/8" 5", 6", 10" Buy Now
1" 5", 10" Buy Now
1-1/8" 5" Buy Now
1-3/16" 5" Buy Now
1-1/4" 5", 10" Buy Now
1-3/8" 5", 10" Buy Now
1-1/2" 5", 10" Buy Now
1-5/8" 5", 10" Buy Now
1-3/4" 5", 10" Buy Now
1-7/8" 5" Buy Now
2" 5" Buy Now
2-1/8" 5" Buy Now
2-1/4" 5" Buy Now
2-3/8" 5" Buy Now
2-1/2" 5" Buy Now
2-9/16" 5" Buy Now
2-11/16" 5" Buy Now
2-3/4" 5" Buy Now
3" 5" Buy Now
3-1/8" 5" Buy Now
3-1/4" 5" Buy Now
3-1/2" 5" Buy Now
3-3/4" 5" Buy Now
4" 5" Buy Now
4-1/2" 5" Buy Now
5" 5" Buy Now
5-1/2" 1-7/8" Buy Now
