AT180-075-CLR-15
HPS 180 Degree U Bend 6061 Aluminum Elbow Pipe Tubing, Mandrel Bent, Mill Finish
⭐Limited Time Offer
Spend $350 and get 10% off with code CM24HPS
$63.00 - $263.00
HPS 180 Degree U Bend 6061 Aluminum Elbow Tubing is commonly used in industrial, automotive, marine and aerospace industry; Great for custom fabrication project such as DIY air intake, cooling systems, turbo intercooler piping setup because 6061 aluminum is the most popular and versatile alloy, and is the least expensive of the heat treatable aluminum alloys. HPS 180 Degree U Bend aluminum round tubing is sold in the T6 condition, ideal for sawing, machining, sanding, and polishing. HPS 180 Degree Bend aluminum elbow pipe can be polished, but due to the softness of the aluminum, care must be taken not to remove too much material, especially in the area near any welds.
Technical Specification
- Product Type: Mandrel Bent 180 Degree Bend Aluminum Elbow
- Material: 6061-T6 Aluminum (Mill Finish)
- Leg length on each side: 6"
- Finish: Mill Finish
Remark: HPS does NOT recommend 6061 Aluminum to be used for exhaust systems.

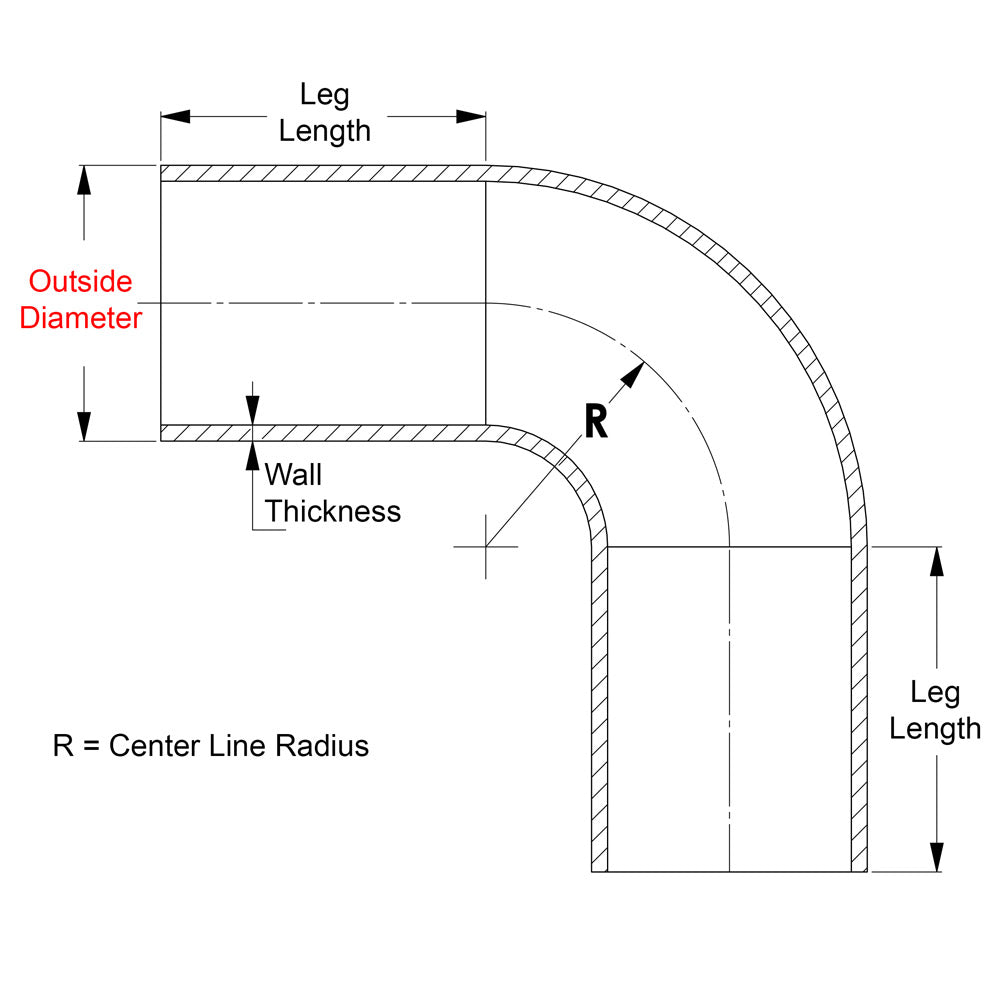

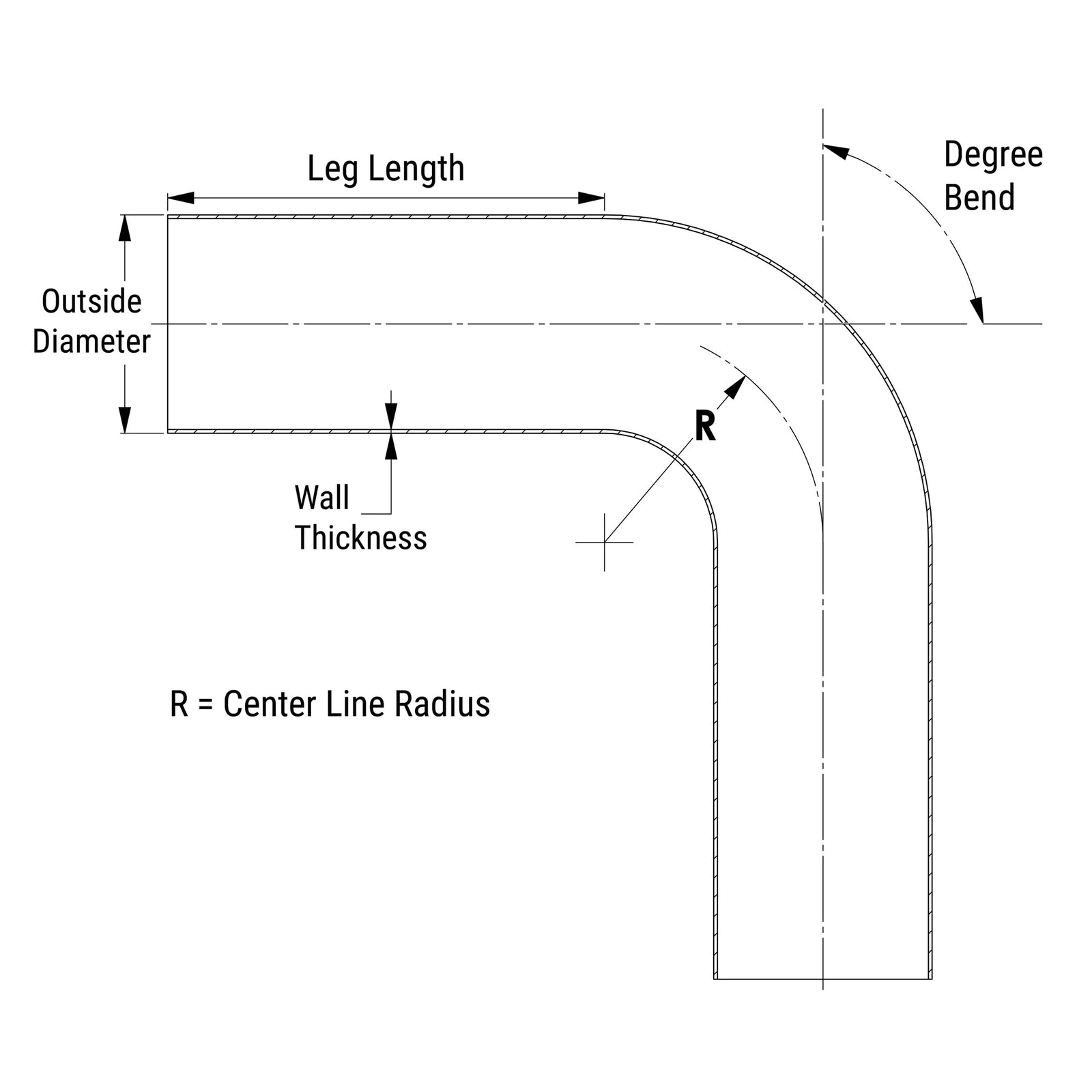

Size Chart
| Outside Diameter | Wall Thickness | Center Line Radius | Part Number |
|---|---|---|---|
| 3/4" (19mm) | 1.65mm | 1-1/2" | AT180-075-CLR-15 |
| 1" (25mm) | 1.65mm | 1-1/2" | AT180-100-CLR-15 |
| 1-1/4" (32mm) | 1.65mm | 2" | AT180-125-CLR-2 |
| 1-3/8" (35mm) | 1.65mm | 1-3/4" | AT180-138-CLR-175 |
| 1-3/8" (35mm) | 1.65mm | 2-1/2" | AT180-138-CLR-25 |
| 1-1/2" (38mm) | 1.65mm | 1-3/4" | AT180-150-CLR-175 |
| 1-1/2" (38mm) | 1.65mm | 2-1/2" | AT180-150-CLR-25 |
| 1-3/4" (45mm) | 1.65mm | 2" | AT180-175-CLR-2 |
| 1-3/4" (45mm) | 1.65mm | 2-1/2" | AT180-175-CLR-25 |
| 2" (51mm) | 1.65mm | 3" | AT180-200-CLR-3 |
| 2-1/4" (57mm) | 1.65mm | 3" | AT180-225-CLR-3 |
| 2-1/4" (57mm) | 1.65mm | 3-1/2" | AT180-225-CLR-35 |
| 2-3/8" (60mm) | 1.65mm | 3-1/2" | AT180-238-CLR-35 |
| 2-1/2" (63mm) | 1.65mm | 3" | AT180-250-CLR-3 |
| 2-1/2" (63mm) | 1.65mm | 3-1/4" | AT180-250-CLR-325 |
| 2-3/4" (70mm) | 1.65mm | 2-3/4" | AT180-275-CLR-275 |
| 2-3/4" (70mm) | 1.65mm | 3-1/2" | AT180-275-CLR-35 |
| 3" (76mm) | 1.65mm | 4" | AT180-300-CLR-4 |
| 3-1/8" (80mm) | 1.65mm | 5" | AT180-312-CLR-5 |
| 3-1/4" (83mm) | 1.65mm | 4-1/2" | AT180-325-CLR-45 |
| 3-1/2" (89mm) | 1.65mm | 4-1/2" | AT180-350-CLR-45 |
| 4" (102mm) | 1.65mm | 5-1/2" | AT180-400-CLR-55 |
