HTSEC180-050-BLUE

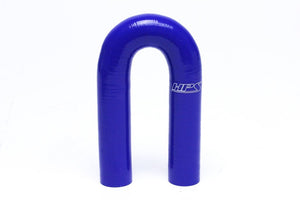

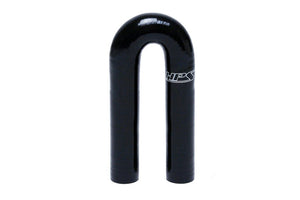

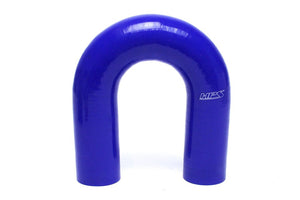

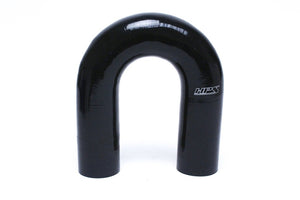

HPS Silicone 180 Degree U Bend Elbow Coupler Hose, High Temp 4-ply Reinforced
$51.00 - $191.00
HPS High Temperature 4-ply Reinforced Silicone 180 Degree U Bend Elbow Coupler Hose meet and exceed SAEJ20 industry standards, ideal for heavy duty pressure connections and provides excellent resistance for high temperature applications. HPS Performance silicone 180 Degree U Bend Coupling Hose is designed and engineered to meet high performance requirements specified in various industry standards, therefore make it great for marine and industrial use, custom turbo or intercooler piping fabrication, DIY intake, or radiator cooling system.
Technical Specification
Product Type: Silicone 180 Degree U Bend Elbow Coupler Hose
Temperature Range: -65 deg. F to + 350 deg. F (177 deg. C)
Reinforced Layer: 4-ply
Color: Black or Blue
UV and ozone resistant
Remark: Silicone hose is compatible with water and coolant, however, it is NOT compatible with fuel or oil.

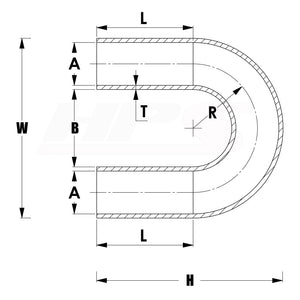

Size Chart
| Inside Diameter | Leg Length on Each Side | Reinforced Layer | Center Line Radius | Part Number | Black | Part Number | Blue |
|---|---|---|---|---|---|
| 1/2" (13mm) | 4-1/2" | 4-ply Polyester | 3/8" | HTSEC180-050-BLK | HTSEC180-050-BLUE |
| 5/8" (16mm) | 4-1/2" | 4-ply Polyester | 1" | HTSEC180-062-BLK | HTSEC180-062-BLUE |
| 3/4" (19mm) | 4-1/2" | 4-ply Polyester | 1-1/8" | HTSEC180-075-BLK | HTSEC180-075-BLUE |
| 7/8" (22mm) | 4-1/2" | 4-ply Polyester | 1-1/4" | HTSEC180-087-BLK | HTSEC180-087-BLUE |
| 1" (25mm) | 4-1/2" | 4-ply Polyester | 1-1/2" | HTSEC180-100-BLK | HTSEC180-100-BLUE |
| 1-1/8" (28mm) | 4-1/2" | 4-ply Polyester | 1-1/2" | HTSEC180-112-BLK | HTSEC180-112-BLUE |
| 1-1/4" (32mm) | 4-1/2" | 4-ply Polyester | 2" | HTSEC180-125-BLK | HTSEC180-125-BLUE |
| 1-3/8" (35mm) | 4-1/2" | 4-ply Polyester | 2" | HTSEC180-138-BLK | HTSEC180-138-BLUE |
| 1-1/2" (38mm) | 4-1/2" | 4-ply Polyester | 2-1/4" | HTSEC180-150-BLK | HTSEC180-150-BLUE |
| 1-5/8" (41mm) | 4-1/2" | 4-ply Polyester | 3" | HTSEC180-162-BLK | HTSEC180-162-BLUE |
| 1-3/4" (45mm) | 4-1/2" | 4-ply Polyester | 2-5/8" | HTSEC180-175-BLK | HTSEC180-175-BLUE |
| 2" (51mm) | 4-1/2" | 4-ply Polyester | 3" | HTSEC180-200-BLK | HTSEC180-200-BLUE |
| 2-1/4" (57mm) | 4-1/2" | 4-ply Polyester | 3-1/4" | HTSEC180-225-BLK | HTSEC180-225-BLUE |
| 2-3/8" (60mm) | 4-1/2" | 4-ply Polyester | 3-5/8" | HTSEC180-238-BLK | HTSEC180-238-BLUE |
| 2-1/2" (63mm) | 4-1/2" | 4-ply Polyester | 3-3/4" | HTSEC180-250-BLK | HTSEC180-250-BLUE |
| 2-3/4" (70mm) | 4-1/2" | 4-ply Polyester | 4-1/8" | HTSEC180-275-BLK | HTSEC180-275-BLUE |
| 3" (76mm) | 4-1/2" | 4-ply Polyester | 4-1/2" | HTSEC180-300-BLK | HTSEC180-300-BLUE |
| Inside Diameter | Leg Length on Each Side | Center Line Radius |
|---|---|---|
| 1/2" (13mm) | 4-1/2" | 3/8" |
| 5/8" (16mm) | 4-1/2" | 1" |
| 3/4" (19mm) | 4-1/2" | 1-1/8" |
| 7/8" (22mm) | 4-1/2" | 1-1/4" |
| 1" (25mm) | 4-1/2" | 1-1/2" |
| 1-1/8" (28mm) | 4-1/2" | 1-1/2" |
| 1-1/4" (32mm) | 4-1/2" | 2" |
| 1-3/8" (35mm) | 4-1/2" | 2" |
| 1-1/2" (38mm) | 4-1/2" | 2-1/4" |
| 1-5/8" (41mm) | 4-1/2" | 3" |
| 1-3/4" (45mm) | 4-1/2" | 2-5/8" |
| 2" (51mm) | 4-1/2" | 3" |
| 2-1/4" (57mm) | 4-1/2" | 3-1/4" |
| 2-3/8" (60mm) | 4-1/2" | 3-5/8" |
| 2-1/2" (63mm) | 4-1/2" | 3-3/4" |
| 2-3/4" (70mm) | 4-1/2" | 4-1/8" |
| 3" (76mm) | 4-1/2" | 4-1/2" |
