HPS FKM Lined Oil Resistant High Temperature Reinforced Silicone Hose

Vacuum Hose
Reinforced Heater Hose
Oil Resistant Hose
Medical Grade Tubing

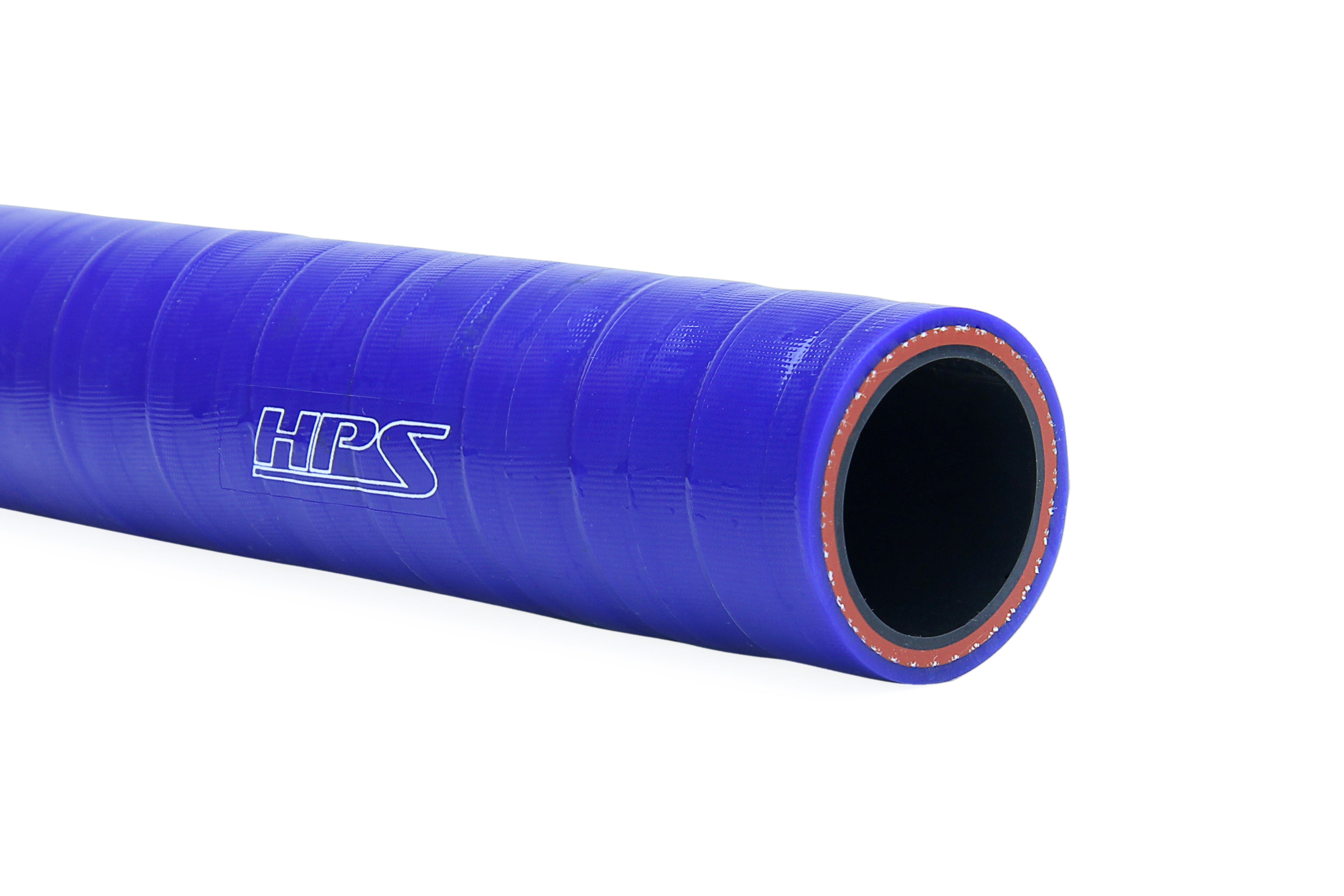

The HPS Performance FKM lined silicone hose is a specially developed hose with a fluoroelastomer liner in our world class silicone hoses. HPS Performance FKM lined silicone hoses can provide superior resistance to the harshness of gasoline, diesel, and automotive oils. The FKM lined hose can be used where the fluid flowing through the hose would traditionally degrade silicone hoses. With the FKM liner, we can minimize permeation, evaporation, and degradation of our silicone hose.

HPS Performance FKM lined hose has excellent resistance to high temperatures, ozone, oxygen, mineral oil, synthetic hydraulic fluids, fuels, aromatics, and many organic solvents and chemicals. FKM can handle the occasional flow of ethanol based fuels.

Technical Specification
- Product Type: FKM Lined Silicone Hose
- Reinforced Layer: 1-ply Polyester Reinforced
- Temperature Range: -65 deg. F to + 350 deg. F (177 deg. C)
- Available Sizes: 1/4" (6mm), 5/16" (8mm), 3/8" (9.5mm), 1/2" (13mm), 5/8" (16mm), 3/4" (19mm), 7/8" (22mm), 1" (25mm)
- Wall Thickness: 4mm +/- 0.2mm
- Color: Black , Blue
- UV and ozone resistant

Recommended uses with HPS Performance FKM lined silicone hoses
- Fuel Return
- Fuel Ventilation
- Crankcase Ventilation
- Turbo Oil Return
- Power Steering Return

REMARK
HPS Performance FKM Lined Silicone Hoses should NOT be used in the following situations:
- Fuel lines with working pressure over 55psi.
- Continuous handling of alcohol fuels.
- Fully submerged in fuel during use.

Size Chart

Inside Diameter
1/4" (6.5mm) Select
5/16" (8mm) Select
3/8" (9.5mm) Select
1/2" (13mm) Select
5/8" (16mm) Select
3/4" (19mm) Select
7/8" (22mm) Select
1" (25mm) Select
