HPS 6061 T6 Aluminum Straight Pipe Tubing Tube Piping Intake Intercooler

Part Number: AST-025

HPS 6061 T6 Aluminum Straight Pipe Tubing Seamless

Name: HPS 6061 T6 Aluminum Straight Pipe Tubing Seamless
Brand: HPS Performance Products
SKU: AST-025
Price: 8.41 USD
Availability: InStock

$8.41

Product Type

Outside Diameter

Length

Over 100 in stock.

Qty

Pickup available at HPS Performance
Monday - Friday, 8:30AM - 4:30PM PST

Usually ready in 24 hours

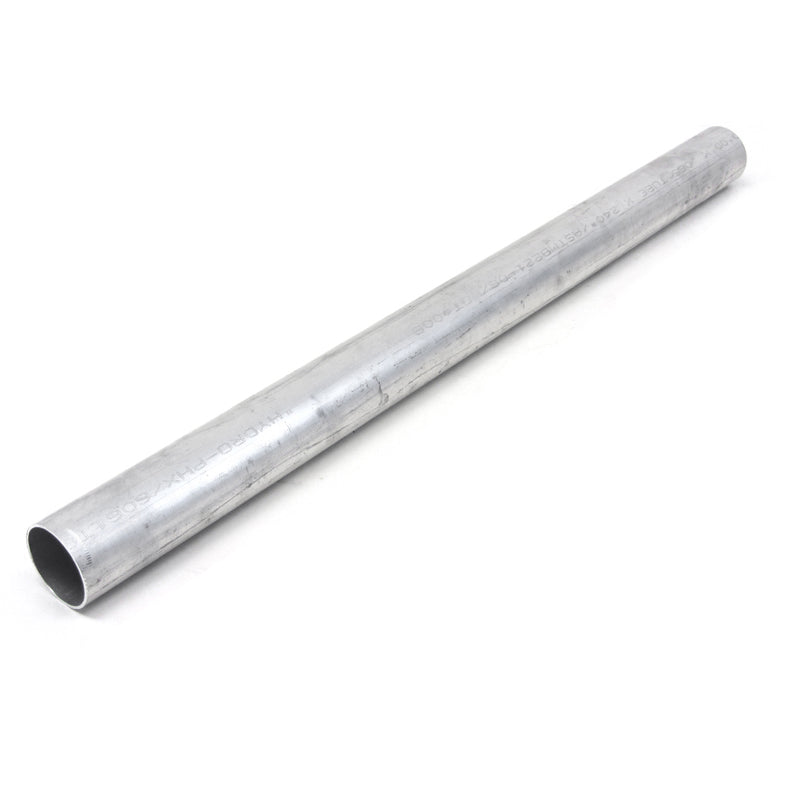

HPS 1/4" 6061 T6 Aluminum Straight Tube ( 1 Feet long ) is commonly used in industrial, automotive, marine and aerospace industry; Great for custom fabrication project such as DIY air intake, cooling systems, turbo intercooler piping setup because 6061 aluminum is the most popular and versatile alloy, and is the least expensive of the heat treatable aluminum alloys. HPS aluminum round tubing is sold in the T6 condition, ideal for sawing, machining, sanding, and polishing. The aluminum pipe can be polished, but due to the softness of the aluminum, care must be taken not to remove too much material, especially in the area near any welds.

Technical Specification
- Part Number: AST-025
- Product Type: Aluminum Straight Tubing
- Material: 6061-T6 Aluminum
- Outside Diameter: 1/4" (6.5mm)
- Wall Thickness: 16 Gauge (1.65mm)
- Length: 1 Feet

Remark: HPS does NOT recommend 6061 Aluminum to be used for exhaust systems.

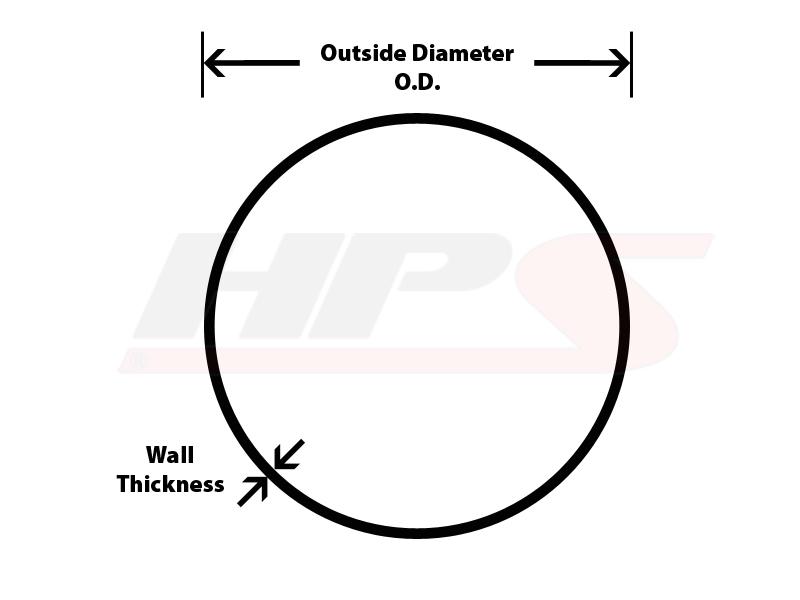

Size Chart

Outside Diameter	Wall Thickness	Part Number
1/4" (6.5mm)	16 Gauge	1 Feet - AST-025 2 Feet - AST-2F-025 3 Feet - AST-3F-025
3/8" (9.5mm)	16 Gauge	1 Feet - AST-038 2 Feet - AST-2F-038 3 Feet - AST-3F-038
1/2" (13mm)	17 Gauge	1 Feet - AST-050 2 Feet - AST-2F-050 3 Feet - AST-3F-050
5/8" (16mm)	17 Gauge	1 Feet - AST-062 2 Feet - AST-2F-062 3 Feet - AST-3F-062
3/4" (19mm)	16 Gauge	1 Feet - AST-075 2 Feet - AST-2F-075 3 Feet - AST-3F-075
1" (25mm)	16 Gauge	1 Feet - AST-100 2 Feet - AST-2F-100 3 Feet - AST-3F-100
1-1/8" (28mm)	16 Gauge	1 Feet - AST-112 2 Feet - AST-2F-112 3 Feet - AST-3F-112
1-1/4" (32mm)	16 Gauge	1 Feet - AST-125 2 Feet - AST-2F-125 3 Feet - AST-3F-125
1-3/8" (35mm)	16 Gauge	1 Feet - AST-138 2 Feet - AST-2F-138 3 Feet - AST-3F-138
1-1/2" (38mm)	16 Gauge	1 Feet - AST-150 2 Feet - AST-2F-150 3 Feet - AST-3F-150
1-5/8" (41mm)	16 Gauge	1 Feet - AST-162 2 Feet - AST-2F-162 3 Feet - AST-3F-162
1-3/4" (45mm)	16 Gauge	1 Feet - AST-175 2 Feet - AST-2F-175 3 Feet - AST-3F-175
1-7/8" (48mm)	16 Gauge	1 Feet - AST-187 2 Feet - AST-2F-187 3 Feet - AST-3F-187
2" (51mm)	16 Gauge	1 Feet - AST-200 2 Feet - AST-2F-200 3 Feet - AST-3F-200
2-1/8" (54mm)	16 Gauge	1 Feet - AST-212 2 Feet - AST-2F-212 3 Feet - AST-3F-212
2-1/4" (57mm)	16 Gauge	1 Feet - AST-225 2 Feet - AST-2F-225 3 Feet - AST-3F-225
2-3/8" (60mm)	16 Gauge	1 Feet - AST-238 2 Feet - AST-2F-238 3 Feet - AST-3F-238
2-1/2" (63mm)	16 Gauge	1 Feet - AST-250 2 Feet - AST-2F-250 3 Feet - AST-3F-250
2-3/4" (70mm)	16 Gauge	1 Feet - AST-275 2 Feet - AST-2F-275 3 Feet - AST-3F-275
3" (76mm)	16 Gauge	1 Feet - AST-300 2 Feet - AST-2F-300 3 Feet - AST-3F-300
3-1/8" (80mm)	16 Gauge	1 Feet - AST-312 2 Feet - AST-2F-312 3 Feet - AST-3F-312
3-1/4" (83mm)	16 Gauge	1 Feet - AST-325 2 Feet - AST-2F-325 3 Feet - AST-3F-325
3-1/2" (89mm)	16 Gauge	1 Feet - AST-350 2 Feet - AST-2F-350 3 Feet - AST-3F-350
4" (102mm)	16 Gauge	1 Feet - AST-400 2 Feet - AST-2F-400 3 Feet - AST-3F-400
4-1/2" (114mm)	14 Gauge	1 Feet - AST-450 2 Feet - AST-2F-450 3 Feet - AST-3F-450
5" (127mm)	2.5mm	1 Feet - AST-500 2 Feet - AST-2F-500 3 Feet - AST-3F-500
