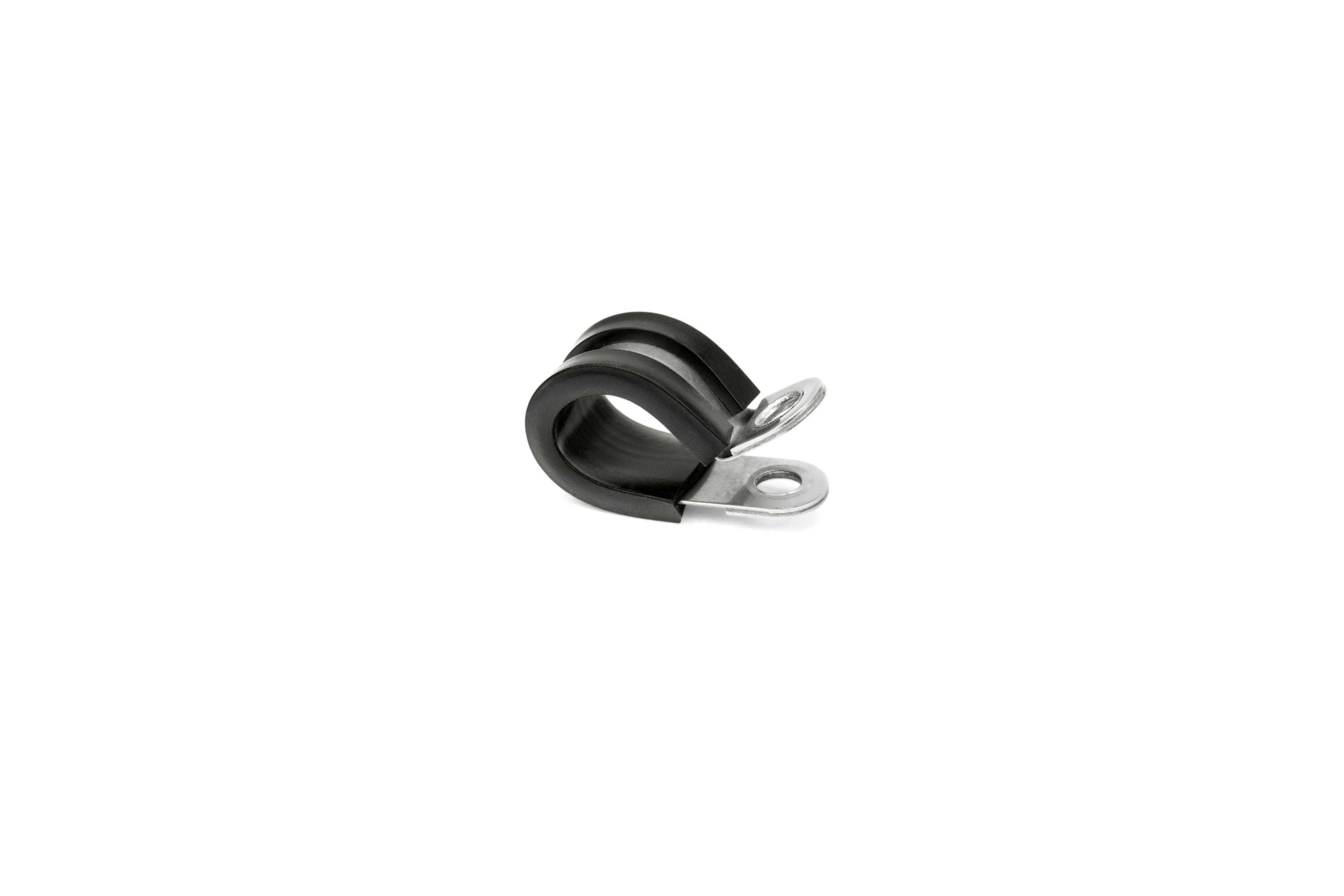

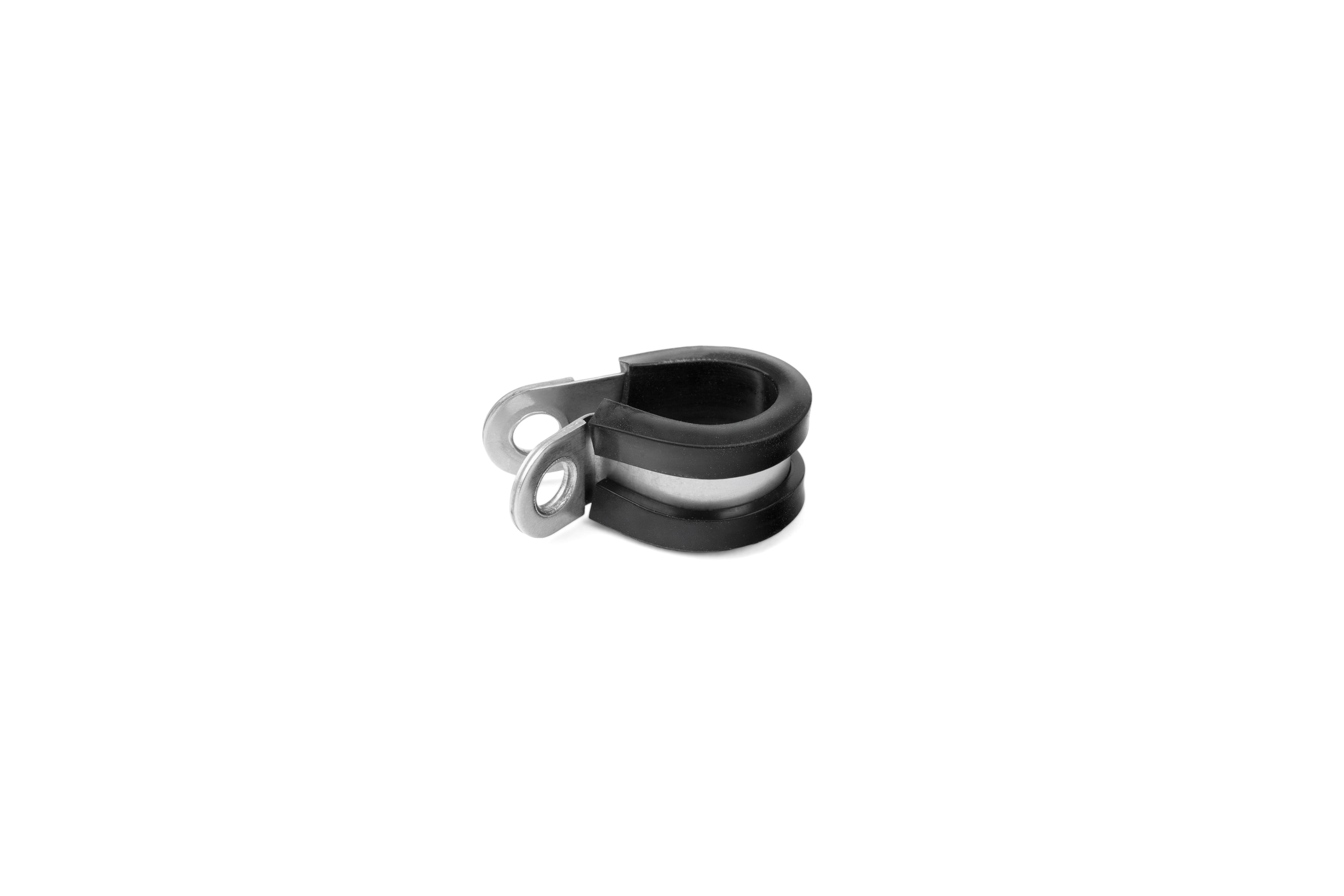

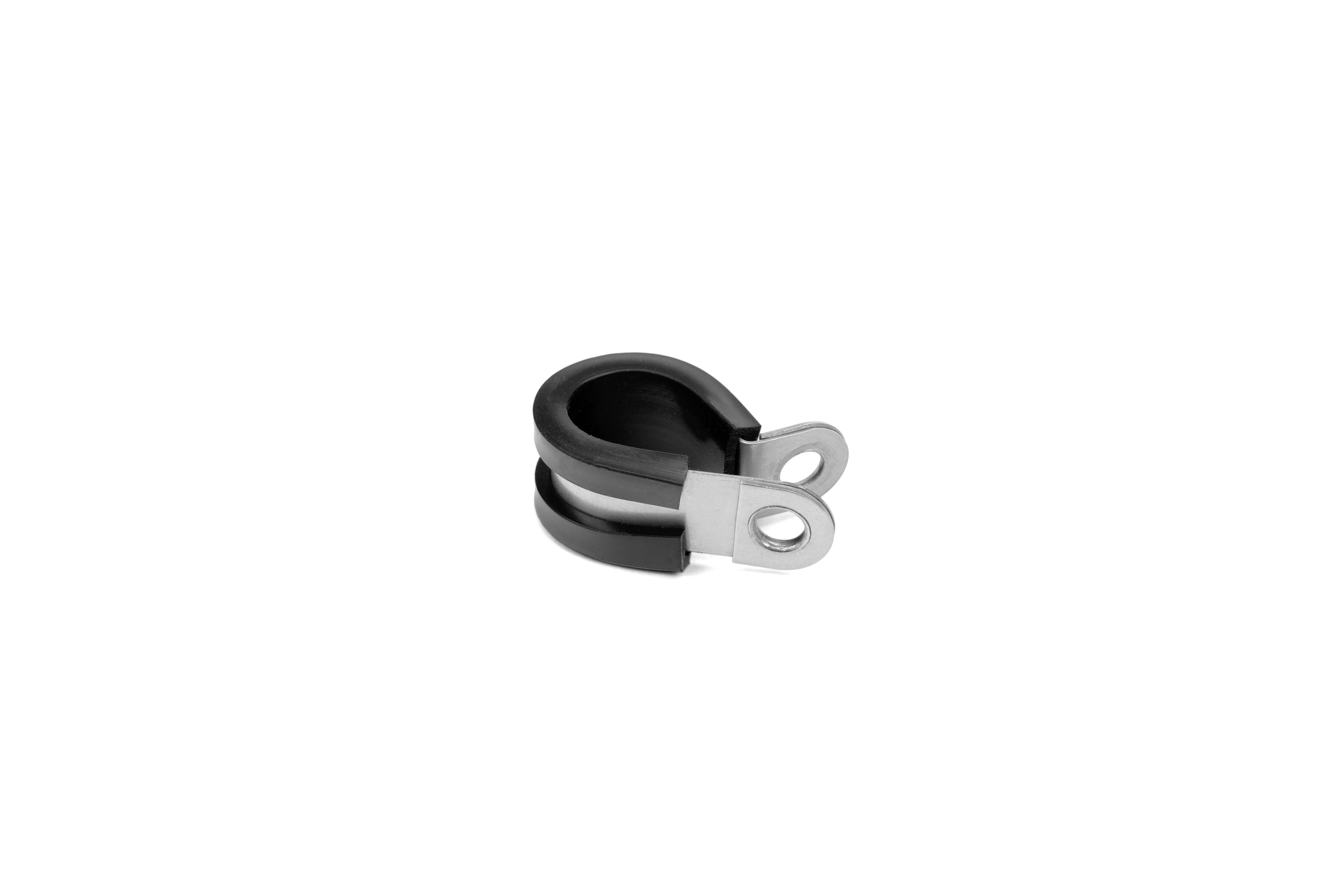

HPS Stainless Steel Adel Cushion Clamp for 3/16" (5mm) OD Tube, Wire and Hose, Black Rubber EPDM

Product Highlights
- Secures pipes, tubes, hoses, or wiring in applications such as HVAC, plumbing, automotive, aerospace, industrial pneumatics and hydraulics.
- 100% stainless steel band with reinforced mounting tabs and a durable EPDM cushion.
- Absorbs vibrations to protect your pipes, tubes, hoses, wires, and surrounding structures from fatigue and damage.
- Reduces noise by eliminating rattling, humming, and clanking.
- Soft EPDM cushion prevents chafing and wear by firmly gripping the lines without scratching or gouging.
- Flexible cushion material accommodates for thermal expansion under Temperature fluctuations.

Technical Specification
- Part Number: EPCC-005
- Cushion Material: EPDM rubber
- Temperature range: -40 deg. F to 210 deg. F (-40 deg. C to 99 deg. C)
- Clamp material: 304 Stainless Steel
- Clamp ID: 5mm
- Clamp OD: 16.2mm
- Band width: 15mm
- Total width: 19mm
- Bolt hole diameter: 6.4mm
- Center of clamp to center of mounting hole: 13.7mm
- Center of clamp to end of tab: 21.2mm
- Total mounting tab thickness: 3.6mm
