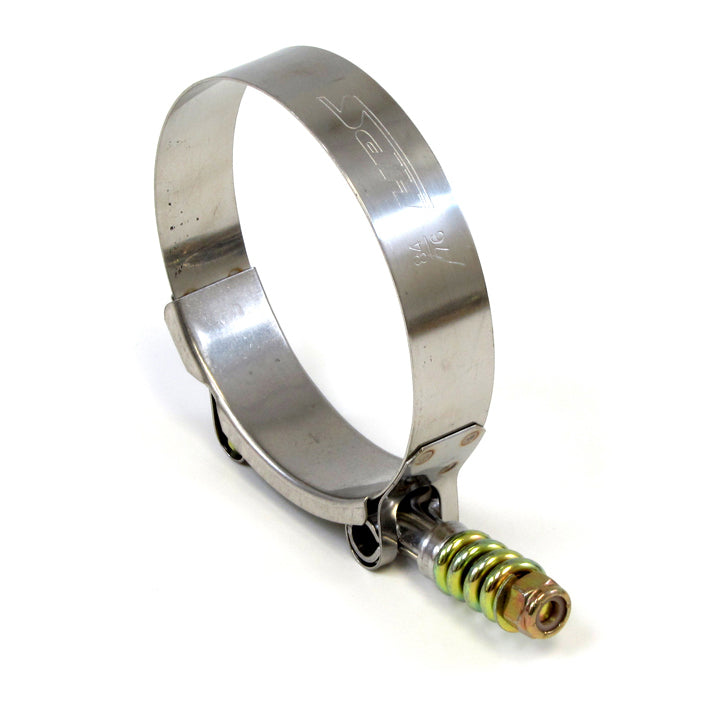

Name: HPS Stainless Steel Spring Loaded T-Bolt Hose Clamp SAE 180 , Range: 6.5"-6.81" (165mm-173mm)
Brand: HPS Performance
SKU: SLTC-650
Price: 11.67 USD
Availability: InStock

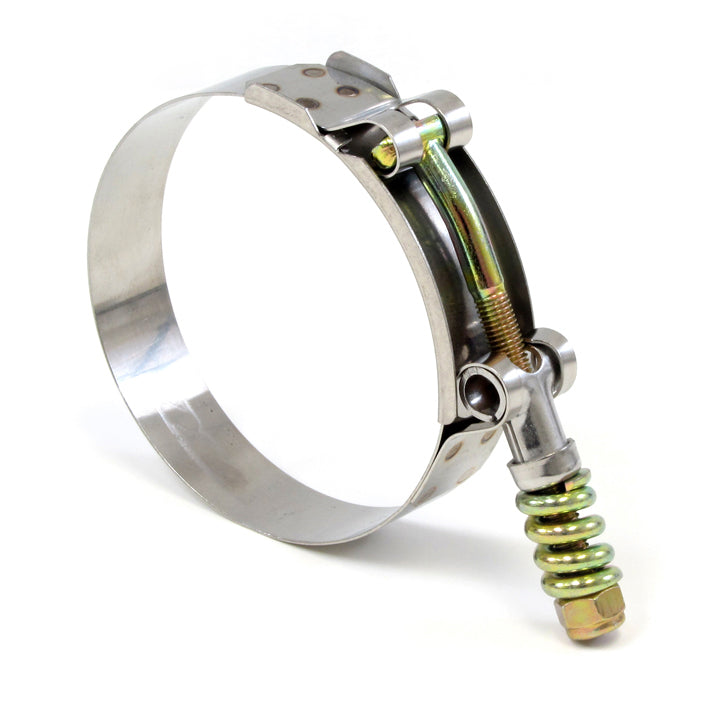

HPS Stainless Steel Spring Loaded T-Bolt Hose Clamp SAE 180 for 6.25 inch ID hose - Range: 6.5 - 6.81 inch

HPS Stainless Steel Spring Loaded T-Bolt Hose Clamp SAE 180 , Range: 6.5"-6.81" (165mm-173mm)

$11.67

HPS Stainless Steel Spring Loaded T-Bolt Hose Clamp SAE 180 , Range: 6.5"-6.81" (165mm-173mm)

Part Number: SLTC-650

HPS Stainless Steel Spring Loaded T-Bolt Hose Clamp SAE 180 , Range: 6.5"-6.81" (165mm-173mm)

$11.67

Size #	HPS Part#	Effective Size Range	Fits HPS Hoses with INSIDE Diameter
40	SLTC-212	2.13"-2.44" (54mm-62mm)	1-7/8" (48mm)
44	SLTC-225	2.25"-2.56" (57mm-65mm)	2" (51mm)
48	SLTC-238	2.36"-2.68" (60mm-68mm)	2-1/8" (54mm)
52	SLTC-250	2.50"-2.80" (63mm-71mm)	2-1/4" (57mm)
56	SLTC-265	2.64"-2.95" (67mm-75mm)	2-3/8" (60mm)
60	SLTC-275	2.76"-3.07" (70mm-78mm)	2-1/2" (63mm)
64	SLTC-287	2.87"-3.19" (73mm-81mm)	2-9/16" (65mm), 2-11/16" (68mm)
68	SLTC-300	2.99"-3.31" (76mm-84mm)	2-3/4" (70mm)
76	SLTC-325	3.27"-3.58" (83mm-91mm)	3" (76mm)
84	SLTC-350	3.5"-3.82" (89mm-97mm)	3.25" (83mm)
88	SLTC-362	3.62"-3.94" (92mm-100mm)	3-3/8" (86mm), 3-1/2" (89mm)
92	SLTC-375	3.75"-4.06" (95mm-103mm)	3-1/2" (89mm)
100	SLTC-400	4"-4.33" (102mm-110mm)	3-3/4" (95mm)
108	SLTC-425	4.25"-4.57" (108mm-116mm)	4" (102mm)
116	SLTC-450	4.5"-4.8" (114mm-122mm)	4-1/4" (108mm)
124	SLTC-475	4.77"-5.08" (121mm-129mm)	4-1/2" (114mm)
132	SLTC-500	5"-5.31" (127mm-135mm)
140	SLTC-525	5.24"-5.55" (133mm-141mm)	5" (127mm)
156	SLTC-575	5.75"-6.06" (146mm-154mm)	5-1/2" (140mm)
172	SLTC-625	6.26"-6.57" (159mm-167mm)
180	SLTC-650	6.5"-6.81" (165mm-173mm)
188	SLTC-675	6.75"-7.06" (172mm-180mm)	6-1/2" (165mm)
204	SLTC-725	7.25"-7.56" (184mm-192mm)	7" (178mm)
220	SLTC-775	7.75"-8.06" (197mm-205mm)	7-1/2" (190mm)
236	SLTC-825	8.25"-8.56" (210mm-218mm)	8" (200mm)

HPS Part#	Effective Size Range
SLTC-212	2.13"-2.44" (54mm-62mm)
SLTC-225	2.25"-2.56" (57mm-65mm)
SLTC-238	2.36"-2.68" (60mm-68mm)
SLTC-250	2.50"-2.80" (63mm-71mm)
SLTC-265	2.64"-2.95" (67mm-75mm)
SLTC-275	2.76"-3.07" (70mm-78mm)
SLTC-287	2.87"-3.19" (73mm-81mm)
SLTC-300	2.99"-3.31" (76mm-84mm)
SLTC-325	3.27"-3.58" (83mm-91mm)
SLTC-350	3.5"-3.82" (89mm-97mm)
SLTC-362	3.62"-3.94" (92mm-100mm)
SLTC-375	3.75"-4.06" (95mm-103mm)
SLTC-400	4"-4.33" (102mm-110mm)
SLTC-425	4.25"-4.57" (108mm-116mm)
SLTC-450	4.5"-4.8" (114mm-122mm)
SLTC-475	4.77"-5.08" (121mm-129mm)
SLTC-500	5"-5.31" (127mm-135mm)
SLTC-525	5.24"-5.55" (133mm-141mm)
SLTC-575	5.75"-6.06" (146mm-154mm)
SLTC-625	6.26"-6.57" (159mm-167mm)
SLTC-650	6.5"-6.81" (165mm-173mm)
SLTC-675	6.75"-7.06" (172mm-180mm)
SLTC-725	7.25"-7.56" (184mm-192mm)
SLTC-775	7.75"-8.06" (197mm-205mm)
SLTC-825	8.25"-8.56" (210mm-218mm)

Effective Diameter Range

Over 100 In stock

Pickup available at HPS Performance

Usually ready in 24 hours

My Build List

Reliable shipping

Top-notch service

Flexible return

HPS Stainless Steel Spring Loaded T-Bolt Hose Clamp 6.5"-6.81" (165mm-173mm) provides high strength and a 360 degree seal. The added spring is there to automatically adjusts the clamp diameter to compensate for the expansion and contraction of hose when temperatures or the pressure fluctuate. HPS spring loaded clamps are reusable. Design to meet or exceeds SAE Spec. J1508 for T-bolt clamps. The clamps has a floating bridge and rolled edges to protect soft hose. The lock nut has a nylon insert to prevent it from backing out. Tighten with a 7/16" socket wrench

The HPS constant tension t bolt clamps are widely used in the charge air cooler system (cac), aircraft, automotive, truck and heavy-duty vehicle, industrial, hardware/plumbing, and marine industries.

Technical Specification
- SAE #180
- Effective Size Range: 6.5"-6.81" (165mm-173mm)
- Superior welded construction
- Floating bridge and rolled edges to protect soft hoses
- 3/4" wide 300 Series Stainless Steel Band and Trunnion
- Zinc Plated T-bolt, Nut and Springs
- 7/16" head Nylon Nut
- Meets or exceeds SAE Spec. J1508 for T-Bolt clamps
- Max. Torque Spec: 75 in. lbs.
- Quantity: 1
