CAC-275-HOT

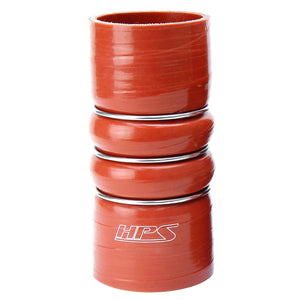

HPS 2-3/4" ID Silicone Charge Air Cooler CAC Hose Double Hump Coupler Bellow Hot Side, Ultra High Temp 4-ply Aramid Reinforced

21 items left

HPS 2-3/4" (70mm) Ultra High Temperature 4-ply Aramid Reinforced Silicone Charge Air Cooler CAC Hose Coupler Hot Side Bellow meet and exceed SAEJ20 industry standards, designed and engineered to provide a connection between engine mounted charge air system components. Ideal for handling slight misalignments and isolating vibration between hose ends; great for marine and industrial use, custom turbo or intercooler piping fabrication.

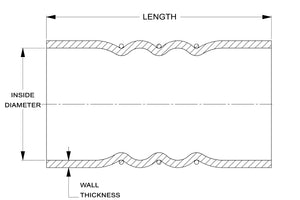

Technical Specification
Product Type: Silicone Charge Air Cooler CAC Hose Coupler Hot Side Bellow
Temperature Range:- 65 deg. F to + 500 deg. F (260 deg. C)
Reinforced Layer: 4-ply Aramid
Hose Inside Diameter: 2.75" (70mm)
Hose Outside Diameter: 3 1/8" (80mm)
Hose Length: 6" and 7-1/2"
Number of Rings: 3
Wall Thickness: 5mm +/- 0.5mm
UV and ozone resistant

Remark: Silicone hose is NOT compatible with fuel or oil.
Silicone hose is compatible with water or ethylene glycol based coolant.
