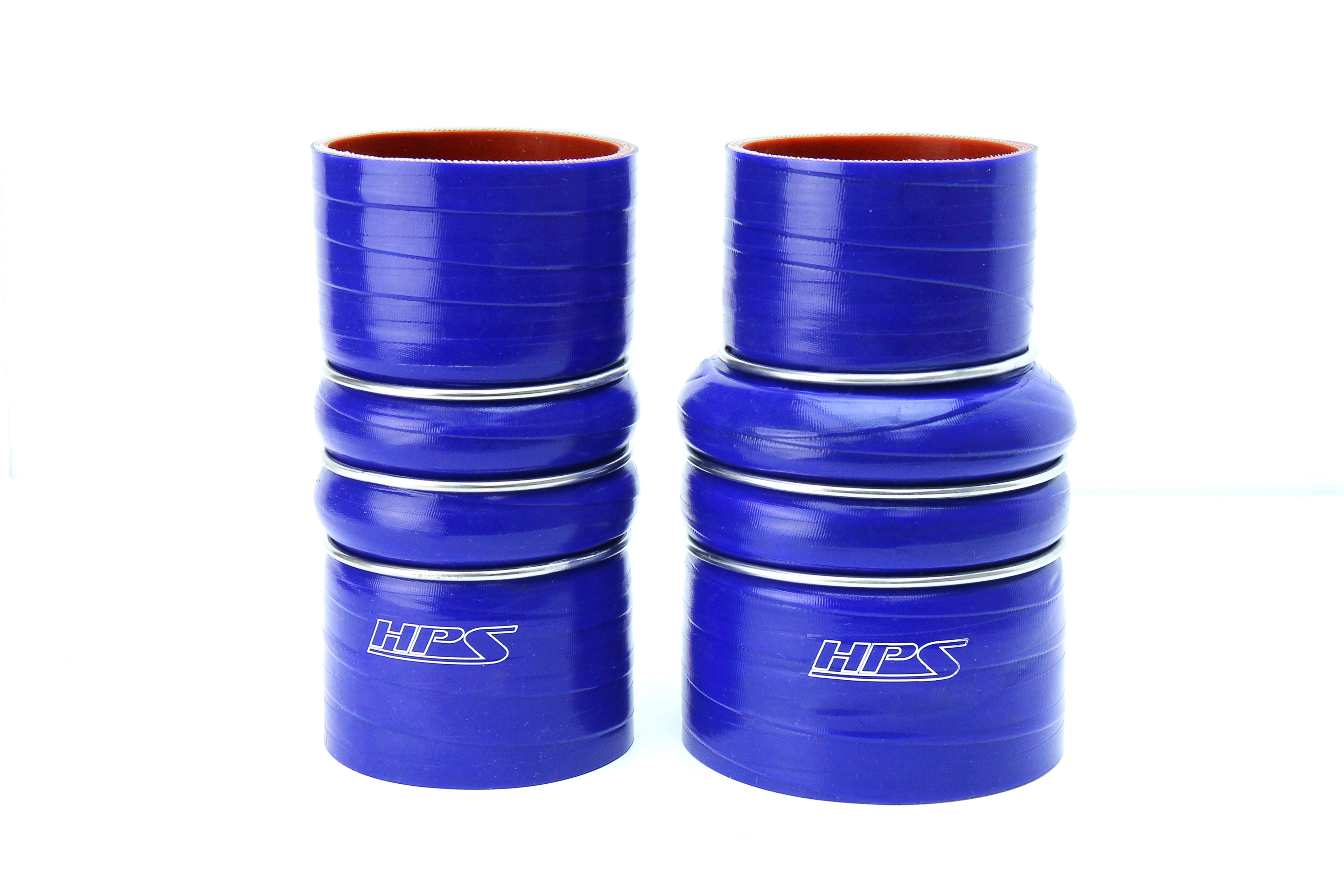

HPS Silicone Charge Air Cooler CAC Hose Hump Coupler Bellow Cold Side, High Temp Reinforced
HPS Performance Reinforced Silicone Charge Air Cooler (CAC) Hoses cold side connect the turbocharger outlet to the charge cooler inlet and the charge cooler to the engine manifold. Increases the power available from a given engine displacement and also forms a major part of engine control strategy aimed at meeting stringent exhaust gas emission regulations.
For superior connection between engine mounted charge air system components, HPS CAC Hose is also ideal for handling slight misalignments and isolating vibration between hose ends.
HPS CAC Hoses cold Side are constructed with 4-ply and are used by professionals in industries such as high performance racing vehicles, commercial truck and bus, Marine, agricultural and off highway vehicles, turbo diesel, and general manufacturing industries.
Technical Specification
Temperature Range: -65 deg. F to 350 deg. F (177 deg. C)
Reinforced layers: Multi-ply Polyester
Remark
Silicone hose is compatible with water or anti-freeze such as coolant.
Silicone hose is NOT compatible with fuel or oil.
Size Chart
| Inside Diameter | Length | Reinforced Layer | Number of Rings |
Temperature Range | Part Number | |
|---|---|---|---|---|---|---|
| 2" (51mm) | 6" | 4-ply polyester | 3 | -65F to 350F (177C) | CAC-200-COLD | BUY NOW |
| 2-1/4" (57mm) | 6" | 4-ply polyester | 3 | -65F to 350F (177C) | CAC-225-COLD | BUY NOW |
| 2-1/2" (63mm) | 6" | 4-ply polyester | 3 | -65F to 350F (177C) | CAC-250-COLD | BUY NOW |
| 2-1/2" - 3" (63mm - 76mm) | 6" | 4-ply polyester | 3 | -65F to 350F (177C) | CAC-250-300-COLD | BUY NOW |
| 2-3/4" (70mm) | 6" | 4-ply polyester | 3 | -65F to 350F (177C) | CAC-275-COLD | BUY NOW |
| 2-3/4" - 3-1/2" (70mm - 89mm) | 6" | 4-ply polyester | 3 | -65F to 350F (177C) | CAC-275-350-COLD | BUY NOW |
| 3" (76mm) | 6" | 4-ply polyester | 3 | -65F to 350F (177C) | CAC-300-COLD | BUY NOW |
| 3" - 3-1/2" (76mm - 89mm) | 6" | 4-ply polyester | 3 | -65F to 350F (177C) | CAC-300-350-COLD | BUY NOW |
| 3-1/2" (89mm) | 6" | 4-ply polyester | 3 | -65F to 350F (177C) | CAC-350-COLD | BUY NOW |
| 3-1/2" - 4" (89mm - 102mm) | 6" | 4-ply polyester | 6 | -65F to 350F (177C) | CAC-350-400-COLD | BUY NOW |
| 4" (102mm) | 6" | 4-ply polyester | 3 | -65F to 350F (177C) | CAC-400-COLD | BUY NOW |
| 5" (127mm) | 6" | 4-ply polyester | 3 | -65F to 350F (177C) | CAC-500-COLD | BUY NOW |
| 7" | 4-ply polyester | 3 | -65F to 350F (177C) | CAC-500-L7-COLD | BUY NOW | |
| 8" | 4-ply polyester | 3 | -65F to 350F (177C) | CAC-500-L8-COLD | BUY NOW | |
| 6" (152mm) | 6" | 4-ply polyester | 3 | -65F to 350F (177C) | CAC-600-COLD | BUY NOW |
| Inside Diameter | Length | Price (USD) |
|---|---|---|
| 2" (51mm) | 6" | BUY NOW |
| 2-1/4" (57mm) | 6" | BUY NOW |
| 2-1/2" (63mm) | 6" | BUY NOW |
| 2-1/2" - 3" (63mm - 76mm) | 6" | BUY NOW |
| 2-3/4" (70mm) | 6" | BUY NOW |
| 2-3/4" - 3-1/2" (70mm - 89mm) | 6" | BUY NOW |
| 3" (76mm) | 6" | $52.00 - BUY NOW |
| 3" - 3-1/2" (76mm - 89mm) | 6" | BUY NOW |
| 3-1/2" (89mm) | 6" | BUY NOW |
| 3-1/2" - 4" (89mm - 102mm) | 6" | BUY NOW |
| 4" (102mm) | 6" | BUY NOW |
| 5" (127mm) | 6", 7", 8" | BUY NOW |
| 6" (152mm) | 6" | BUY NOW |
